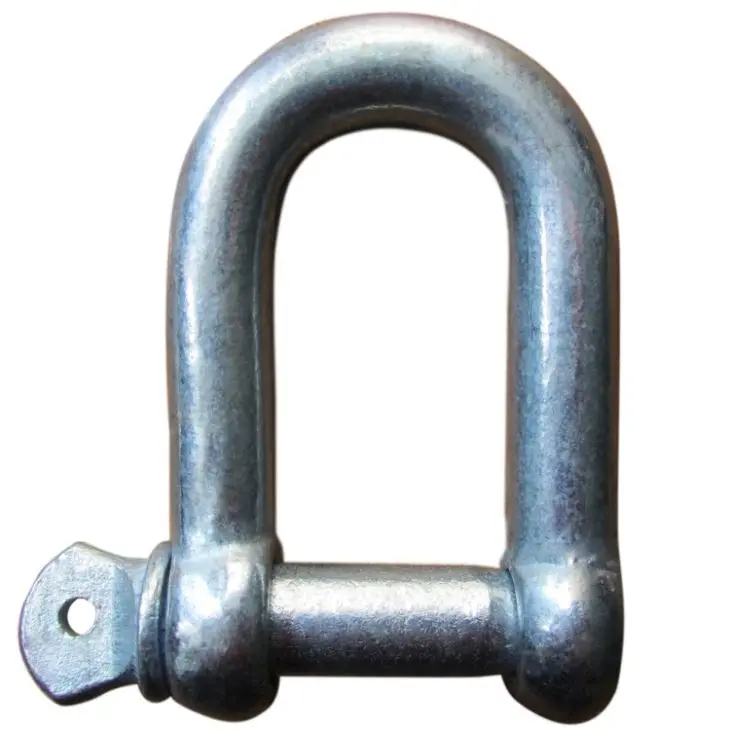

18mm JIS Type Galvanizing D Shackles With Collar
Suitable for a wide range of lifting and rigging applications.
| Size | Dimensions (mm) | WLL (t) | Weight (lbs) | ||||
|---|---|---|---|---|---|---|---|
| mm | in | B | D | L | d1 | ||
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.20 |
| 6 | 1/4 | 12 | 11 | 25 | 6.5 | 0.15 | 0.33 |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.55 |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.88 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 1.32 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 1.77 |
| 19 | 3/4 | 36 | 37 | 74 | 20 | 1 | 2.21 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 3.31 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 4.41 |
| 28 | 1 1/8 | 55 | 56 | 110 | 30 | 2.5 | 5.52 |
| 32 | 1 1/4 | 64 | 64 | 130 | 34 | 3.2 | 7.06 |
| 38 | 1 1/2 | 76 | 76 | 145 | 40 | 4.2 | 9.27 |
| 44 | 1 3/4 | 80 | 90 | 160 | 47 | 6.5 | 22 |
| 50 | 2 | 100 | 100 | 185 | 53 | 8 | 26 |
| 65 | 2 1/2 | 110 | 130 | 240 | 68 | 15 | 62 |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 97 |
Item: JIS Type D Shackles With Collar
Material: Q235 carbon steel
Available Sizes: 5MM to 75MM
Surface Finish: Galvanized
MOQ: 1000 pcs
Production Capacity: 3 Containers per month

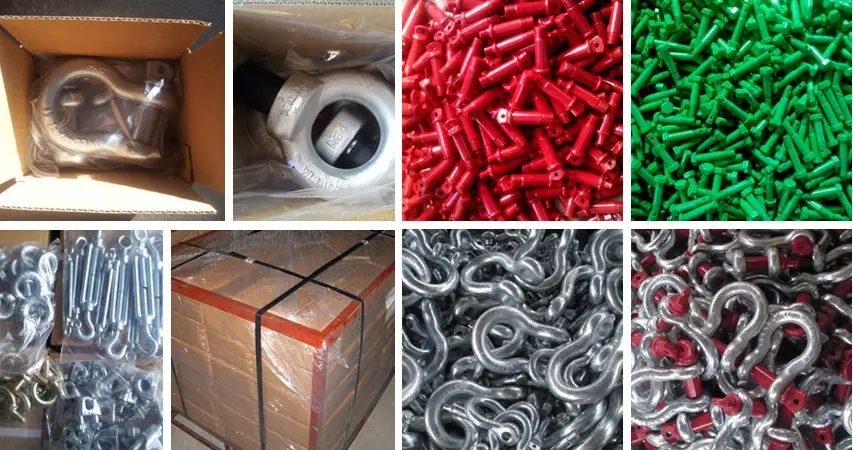

Packing: Gunny bag, carton case, or pallet. Customized options include steel pallets, wooden pallets, and IPPC wooden boxes.
Shipping: Primarily by sea (due to heavy cargo nature); air freight available.
Payment Terms: 30% advance payment or LC.
Delivery Time: Approximately one month per container.
Loading Port: Qingdao port or other major China ports.
