Product Introduction
| DETAILS |

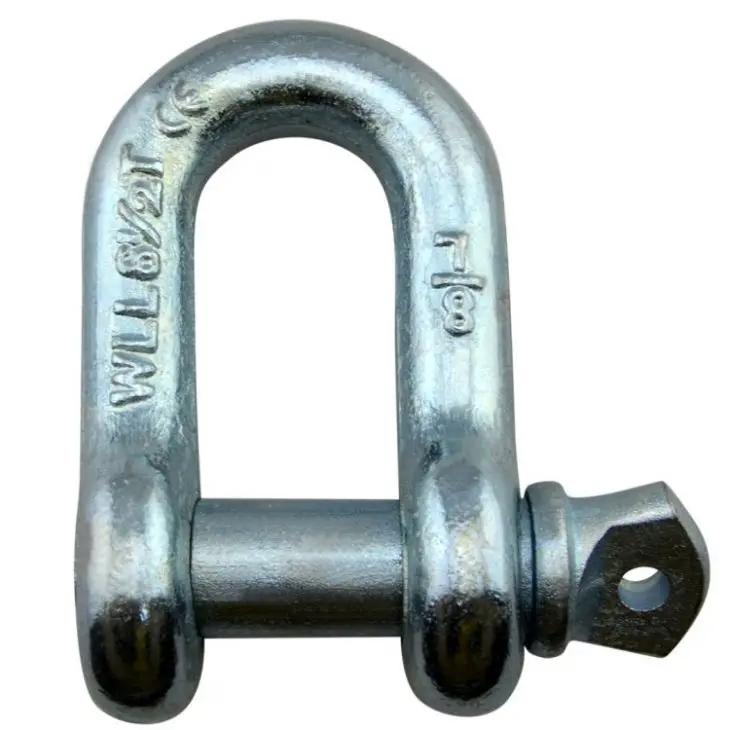

US Type Screw Pin D Shackles G210 |
|
| Size |
3/16" to 2 1/2" |
| Working Load Limited |
1/3T to 55T |
| Material |
Carbon steel |
| Safety Factor |
1:4 or 1:6 |
| Surface Treatment |
Galvanized, Hot Dip Galvanized, Painted, Mechanical galvanized, Daromet and others Forged and heat treated |

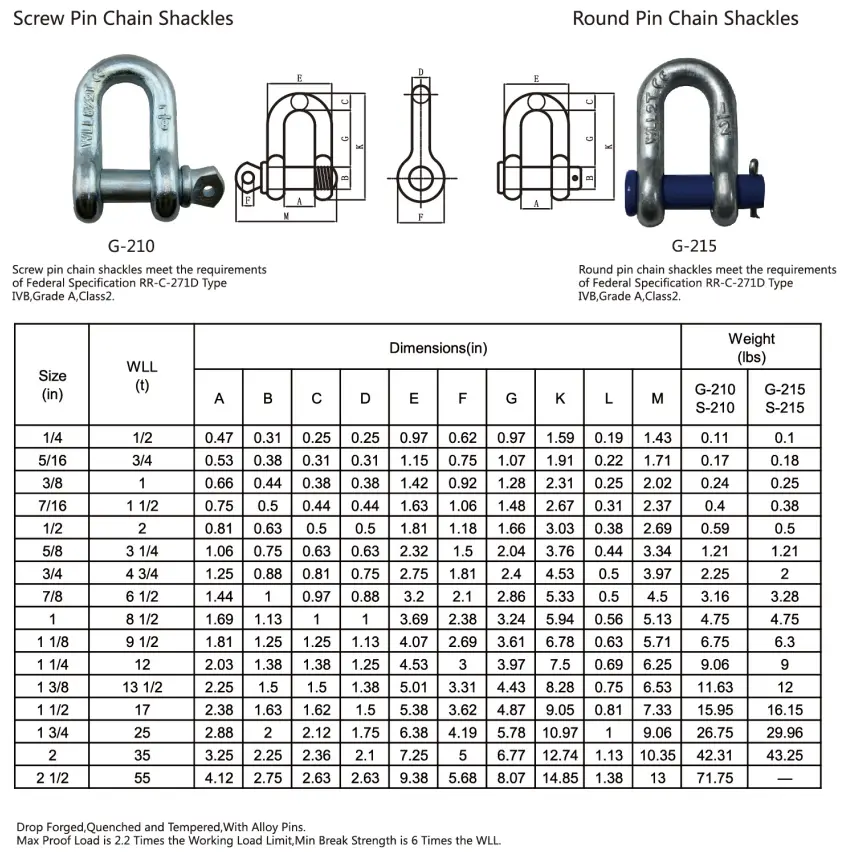

Product Specification
Item: US Type Screw Pin D Shackles G210
Type: US Type
Material: Body is 45# steel, pin is 40Cr
Size Range: From 3/16" to 2 1/2"
Working Load Limited: 1/3T to 55T (85T and 120T also available)
Surface Finish: Galvanized, Hot Dip Galvanized, Painted, Mechanical galvanized, Daromet, etc.
Minimum Order Quantity: 1000 pieces
Production Capacity: 3 Containers per month
Package and Shipping
Packing: Standard international seaworthy package or customized requirements.
Shipping Methods: By sea (ship) or by air.
Payment Terms: 30% advanced by T/T, balance upon copy of B/L; L/C at sight; Western Union.
Delivery Time: Approximately 20T per month.
Loading Port: Qingdao port or other major Chinese ports.
Workshop & Quality Control
Workshop of Screw Pin D Shackles G210
Rigorous Testing Before Shipment
Frequently Asked Questions (FAQ)
1. What is the material composition of the G210 D Shackle?
The body of the G210 shackle is made from high-quality 45# carbon steel, while the screw pin is constructed from 40Cr alloy steel for enhanced strength and durability.
2. What safety factors do these shackles provide?
Our US Type Screw Pin D Shackles are designed with a safety factor of either 1:4 or 1:6, ensuring reliable performance under heavy lifting conditions.
3. Are there different surface finishes available?
Yes, we offer various surface treatments including Hot Dip Galvanized, Electric Galvanized, Painted, Mechanical Galvanized, and Daromet to suit different environmental requirements.
4. What is the maximum load capacity available for this model?
The standard Working Load Limit (WLL) ranges from 1/3T to 55T. However, we can also supply heavy-duty versions with capacities of 85T and 120T upon request.
5. Can the packaging be customized for international shipping?
Absolutely. We provide standard international seaworthy packaging as default, but we can fully customize the packing based on your specific needs.
6. What are the typical lead times for a 20T order?
Our production capacity allows us to deliver approximately 20T of shackles within one month, with shipping available from major ports like Qingdao.
