1. Product Introduction of the US Type Screw Pin Anchor Shackles G209
DETAILS

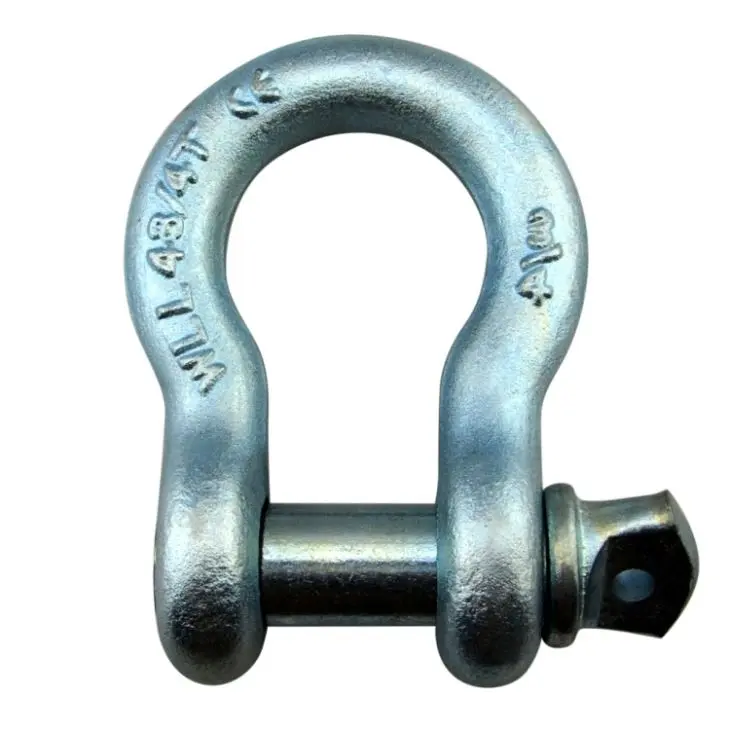

US Type Screw Pin Anchor Shackles G209
Size
3/16" to 2 1/2"
Working Load Limited
1/3T to 55T
Material
Carbon steel (45# steel for body, 40Cr for pin)
Surface
Galvanized, Hot Dip Galvanized, Painted, Mechanical galvanized, Daromet and others Forged and heat treated
Safety factor
1:4 or 1:6

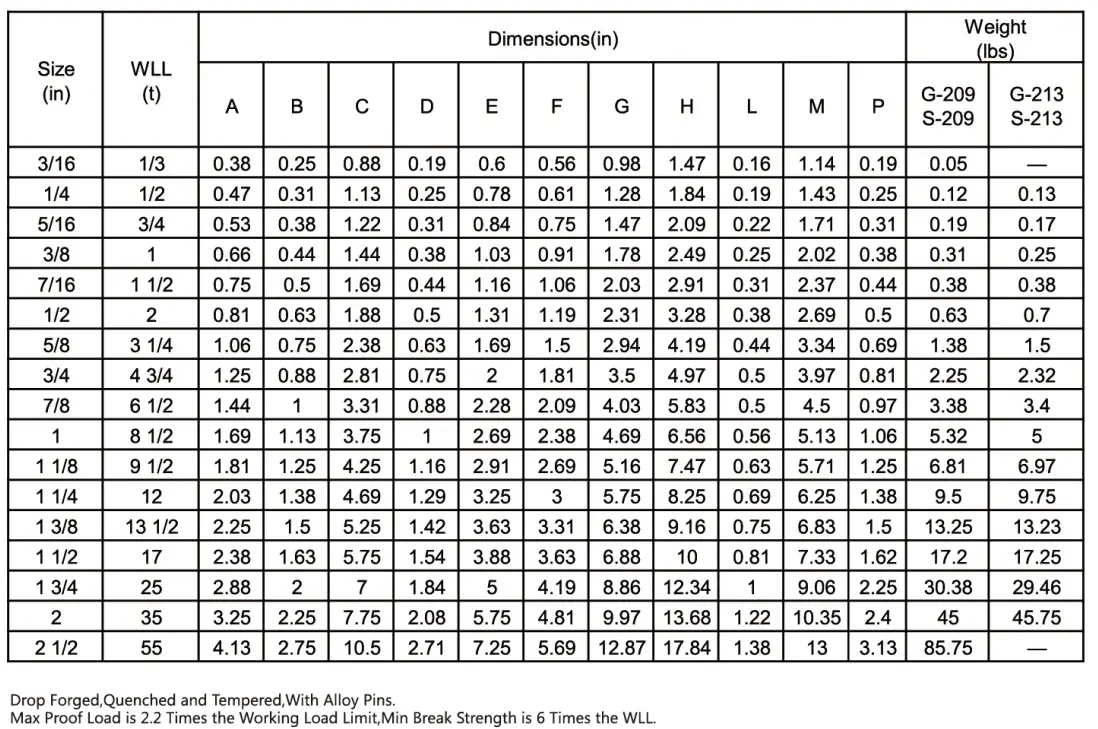

2. Product Specification of the US Type Screw Pin Anchor Shackles G209
🔹
Item: US Type Screw Pin Anchor Shackles G209
🔹
Size Range: 3/16" to 2 1/2"
🔹
Working Load Limit: 1/3T to 55T (Bigger sizes 85T and 120T also available)
🔹
Safety Factor: 1:4 or 1:6
🔹
Technology: Drop Forged and heat treatment
🔹
Surface Finish: Galvanized, Hot Dip Galvanized, Painted, Mechanical galvanized, Daromet and others
🔹
MOQ: 1000 pieces
🔹
Production Capacity: 3 Containers per month
3. Package and Shipping of the US Type Screw Pin Anchor Shackles G209
📦
Packing: Gunny bag or carton case and pallet or other customized, or according to customers' requirement
🚢
Shipping: By ship or by air
💳
Payment Terms: 30% payment in advance or LC
⏱️
Delivery Time: One container per month
⚓
Load Port: Qingdao port or other China ports
Workshop and Quality Control
Workshop of US Type Screw Pin Anchor Shackles G209 (Punching Machine and Friction Type Forging Machine)
Test before ship US Type Screw Pin Anchor Shackles G209 (Test material, surface and working load limited)
Frequently Asked Questions
What size ranges are available for the G209 anchor shackles?
We provide a wide range of sizes from 3/16" to 2 1/2". For specialized heavy-duty requirements, we can also supply larger sizes such as 85T and 120T.
What is the safety factor for these shackles?
The standard safety factor for our US Type Screw Pin Anchor Shackles G209 is either 1:4 or 1:6, depending on the specific application requirements.
What materials are used in the production of the G209 shackles?
The shackles are manufactured using high-quality carbon steel, specifically 45# steel for the body and 40Cr for the pin, followed by drop forging and heat treatment for maximum durability.
What surface treatments can I choose from?
We offer various surface finishes including Electric Galvanized, Hot Dip Galvanized, Painted, Mechanical galvanized, and Daromet to suit different environmental conditions.
What is the typical delivery time and shipping port?
The typical delivery time is approximately one month per container. Our primary loading port is Qingdao port, though we can accommodate other China ports as per customer requirements.
How is the quality of the shackles ensured before shipping?
Every batch undergoes rigorous testing before shipment, including material analysis, surface inspection, and working load limit testing to ensure compliance with international standards.
