PRODUCT DETAILS
1. Product Introduction of the HDG US Type G279 Forged Machinery Eye Bolts With Shoulder
| Category |
Details |
Preview |
- Size: 1/4 x 2 to 1 1/2 x 15
- Material: Carton Steel
- Surface: Galvanized, Zinc Plated CR3, Hot Dip Galvanized
- Process: Forged - Quenched & Tempered
- Application: Suitable for lifting
|

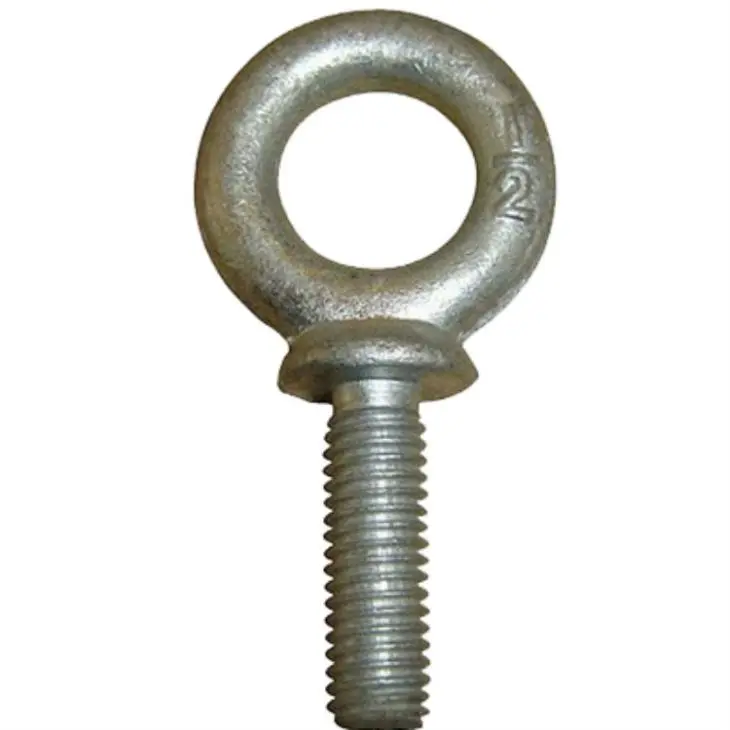

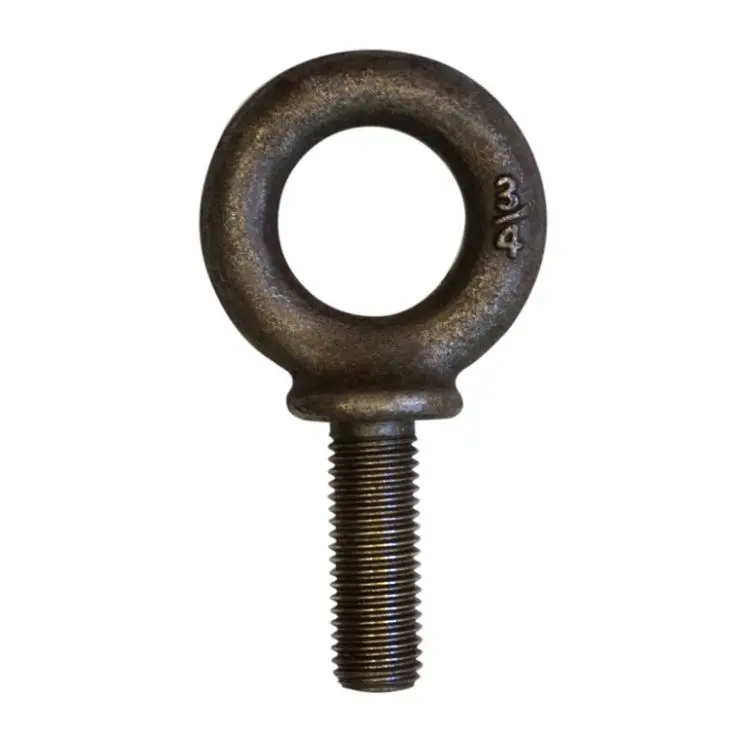

G279 Eye Bolts With Shoulder
High-quality forged construction designed for durability and safety in heavy-duty rigging applications.
|
|
⚠️
Important Technical Notes:
- Working Load Limits shown are for in-line pull.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Ultimate Load is 5 times the Working Load Limit.
- Maximum Proof Load is 2 times the Working Load Limit.

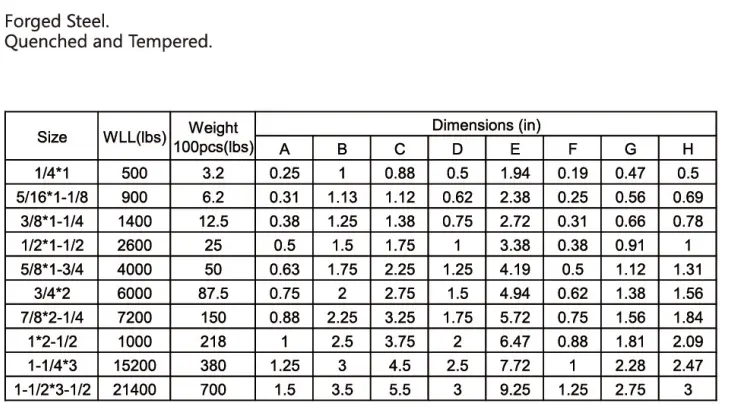

2. Product Specification of the G279 Eye Bolts With Shoulder
Item & Type
US Type G279 Eye Bolts With Shoulder
Material
High Grade 45# Steel
Available Sizes
From 1/4 x 1 to 1 1/2 x 3 1/2
Finish Options
Galvanized, Zinc Plated CR3, Hot Dip Galvanized
MOQ
1000 pieces
Production Capacity
3 Containers per month
3. Package and Shipping
- Packing: Gunny bag, carton case, and pallet (Customizable based on requirements).
- Shipping: Available by sea or air freight.
- Payment Terms: 30% payment in advance or LC.
- Delivery Time: Standard 1 container per month.
- Loading Port: Qingdao port or other major ports in China.
Workshop & Quality Control
Stringent testing is conducted before every shipment to ensure the highest safety standards for all rigging products.
Frequently Asked Questions (FAQ)
Q1: What is the safety factor for the US Type G279 Eye Bolts?
The Ultimate Load of these eye bolts is 5 times the Working Load Limit (WLL), ensuring a high level of safety for lifting operations.
Q2: Are these eye bolts suitable for fatigue-sensitive applications?
Yes, they are fatigue rated at 1-1/2 times the Working Load Limit for up to 20,000 cycles.
Q3: What materials are used in the manufacturing of G279 shoulder eye bolts?
They are primarily manufactured from high-quality 45# carbon steel, forged and then quenched and tempered for maximum strength.
Q4: What surface treatments can be applied to the eye bolts?
Available finishes include standard Galvanized, Zinc Plated CR3, and Hot Dip Galvanized (HDG) for superior corrosion resistance.
Q5: What is the typical lead time for a large order?
Our production capacity is approximately 3 containers per month, with a standard delivery time of one month per container.
Q6: Do these bolts support angle loading?
The Working Load Limits provided are specifically for in-line pull. Please consult technical charts for reduced capacities when angle loading is required.
