📊 TECHNICAL SPECIFICATIONS
| Working Load Limit (WLL/t) |
Dimensions (mm) |
Weight |
| Carbon |
Alloy |
B |
E |
C |
M |
G |
F |
D |
L |
(lbs) |
| 0.75 | 1 | 73 | 25 | 15 | 18 | 16 | 51 | 32 | 127 | 0.5 |
| 1 | 1.5 | 80.3 | 25.5 | 16.7 | 20 | 18 | 58 | 35 | 147 | 0.75 |
| 1.5 | 2 | 92 | 30.4 | 18.4 | 23 | 22.5 | 67 | 38 | 165 | 0.99 |
| 2 | 3 | 105 | 32 | 22.4 | 26 | 24 | 69 | 24 | 177.5 | 1.85 |
| 3 | 5 | 126 | 38.5 | 29.5 | 32 | 29 | 82 | 51 | 216.5 | 3.86 |
| 5 | 7 | 167 | 47 | 35.8 | 40 | 36 | 95.5 | 64 | 262.5 | 7.25 |
| 7.5 | 11 | 192 | 61 | 46 | 51 | 47.7 | 111.2 | 76 | 323 | 13.45 |
| 10 | 15 | 214.6 | 66 | 50.8 | 55.6 | 55.5 | 114 | 82.5 | 342 | 18.1 |
| 15 | 22 | 262.5 | 89.5 | 65 | 68.8 | 68.5 | 141 | 108 | 426 | 35.3 |
Safety Note: Proof Load is 2 Times the Working Load Limit. Carbon hooks are designed with a 5:1 design factor; Alloy hooks are designed with a 4:1 design factor.
Frequently Asked Questions
Q1: What materials are available for the Threaded Shank Hooks 319?
A: These hooks are available in high-quality 45# Carbon Steel and High-Strength Alloy Steel to suit different industrial load requirements.
Q2: What is the safety design factor for these hooks?
A: Our carbon steel hooks feature a 5:1 design factor, while alloy steel hooks are engineered with a 4:1 design factor for maximum safety.
Q3: Can the surface treatment be customized?
A: Yes, we offer several surface finishes including painted and galvanized options to ensure durability and corrosion resistance in various environments.
Q4: What is the minimum order quantity (MOQ)?
A: The standard MOQ for the Shank Hooks 319 is 100 pieces for each specific size.

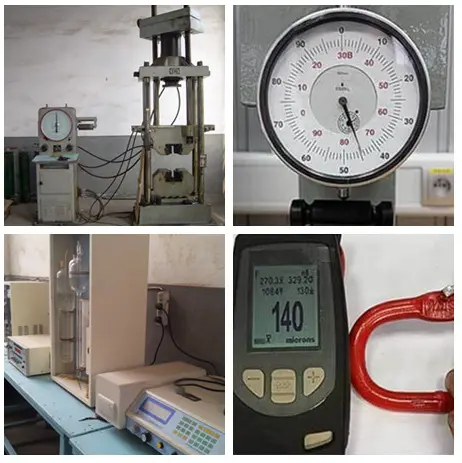

Q5: How do you ensure product quality before shipping?
A: Every batch undergoes rigorous performance and strength testing in our specialized facility to ensure they meet the 2x Working Load Limit proof load standard.
Q6: What are the primary shipping ports used for export?
A: We primarily ship from major ports in China to ensure efficient international delivery.
