PRODUCT DETAILS
1. Product Introduction of the Forged Ratchet Type Load Binders Turnbuckles
| DETAILS |
Ratchet Type Load Binders With Jaw And Jaw |
|
| Size |
1 3/8 and 1 3/4 |
| Material |
Alloy steel |
| Surface |
Painted and others |
| Technology |
Drop Forged |
| Usage |
Used for chain tensioning |
| Size (in) |
Breaking Load (lbs) |
Dimensions (mm) |
Weight (lbs) |
| A(Max) | B | C | D | E | F | G | H | I | J | K |
| 1 3/8 |
85000 |
572 | 560.5 | 75 | 35 | 24 | 92.5 | 108 | 53 | 60 | 27 | 65 |
16.53 |
| 1 3/4 |
133600 |
850.9 | 558.8 | 123.8 | 60.3 | 55 | 111 | 108 | 53 | 44.45 | 44.45 | 88.45 |
27.56 |
✓
One piece assembly, no bolts or nuts to loosen.
✓
Ratchet spring is rust proofed for long-term durability.
✓
All load bearing or holding parts are high-quality forged.
✓
Easy operating positive ratchet mechanism.
✓
Binders shown with Proof Loads have been individually tested prior to shipment.
2. Product Specification of the Ratchet Type Load Binders With Jaw And Jaw
Item: Ratchet Type Load Binders
Type: US Type
Material: 45# Steel / Alloy Steel
Size: 1 3/8 and 1 3/4
Surface: Painted and customized options
MOQ: 100 pieces
Capacity: 2 Containers per month

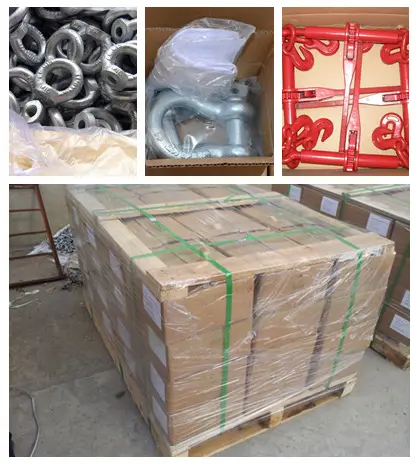

3. Package and Shipping of Ratchet Type Load Binders
Packing: Carton case and pallet (customized available)
Shipping: By sea or by air
Payment: 30% advance or LC
Delivery: Approx. 1 month per container
Load Port: Major ports in China
Frequently Asked Questions (FAQ)
Q: What materials are used for these load binders?
A: These ratchet type load binders are manufactured using high-quality alloy steel and 45# steel for maximum strength and durability.
Q: Are the load binders tested before shipment?
A: Yes, all binders are individually proof tested to the specific proof load values prior to shipment to ensure safety and reliability.
Q: What surface treatments are available?
A: The standard surface treatment is painting, but other customized finishes can be provided based on your requirements.
Q: What sizes do you offer for the Jaw and Jaw type load binders?
A: We currently offer standard sizes of 1 3/8 and 1 3/4 inches.
Q: What is the typical delivery time for a bulk order?
A: For a full container order, the delivery time is approximately one month.
Q: How are the products packaged for long-distance shipping?
A: We use robust carton cases secured on pallets to ensure the products remain safe during transit via sea or air.
