Wholesale Hot Dip Galvanized G401 Chain Swivel Supplier, Manufacturers

1 / 1

Wholesale Hot Dip Galvanized G401 Chain Swivel Supplier, Manufacturers

FOB Price: US $0.5 - 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month
Port: Qingdao
Payment Terms: L/C,D/A,D/P,T/T

Send Inquiry

Product Description

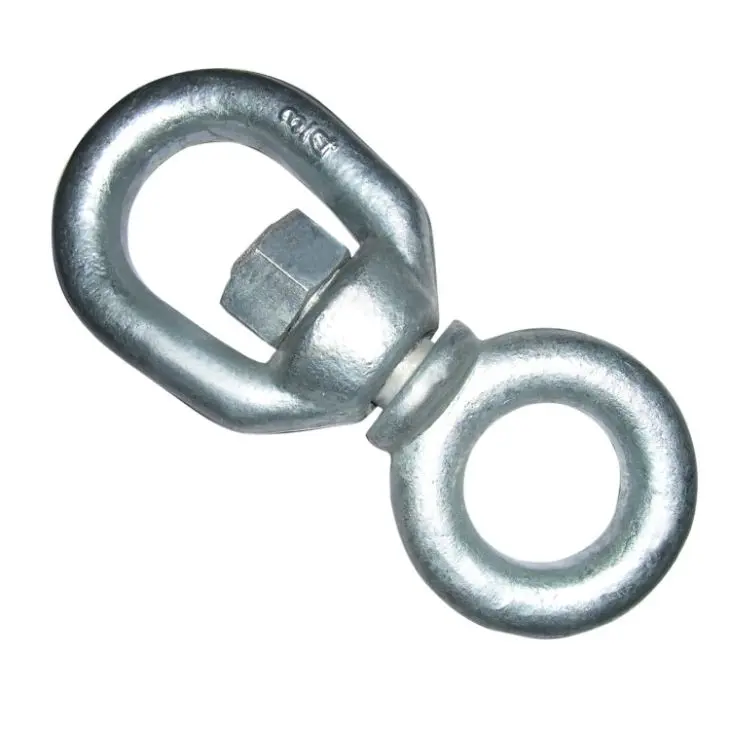

Product Introduction of the Hot Dip Galvanized G401 Chain Swivel

Product: G401 Chain Swivel
Size: 1/4” to 3/4”
Material: Carbon steel
Surface: Hot dip galvanized and others
Technology: Forged - Quenched and Tempered
Suitability: Suitable for use with chain

Meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 1, except for those provisions required of the contractor.

Ultimate Load is 5 times the Working Load Limit.

Meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.

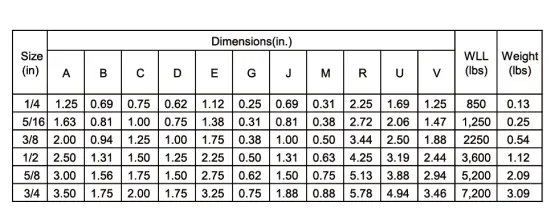

Product Specification of the G401 Chain Swivel

Item: G401 Chain Swivel
Type: US Type G401
Material: 45# steel
Size Range: From 1/4" to 3/4"
Surface: Hot dip galvanized and others
MOQ: 1000 pieces
Capacity: 2 Containers per month

High quality, Competitive price and good service. Customers' special need is welcomed.

Package and Shipping of the G401 Chain Swivel

Packing: Gunny bag or carton case and pallet or other customized
Shipping: By ship or by air
Payment: 30% payment in advance or LC
Delivery: 1 container for one month
Load Port: Qingdao port or other ports in China

Workshop

Test before shipment

Frequently Asked Questions

What materials are used for the G401 Chain Swivel?

The G401 Chain Swivel is manufactured using high-quality Carbon Steel (45# steel), which is forged, quenched, and tempered for superior strength and durability.

What is the design factor and safety load limit?

The Ultimate Load of our G401 Chain Swivel is 5 times the Working Load Limit (WLL). It meets or exceeds all ASME B30.26 requirements regarding ductility and design factors.

Does this product meet international standards?

Yes, it meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 1, as well as ASME B30.26 standards for rigging hardware.

What surface treatments are available?

The standard finish is Hot Dip Galvanized, which provides excellent corrosion resistance. Other surface treatments can be provided based on customer requirements.

What are the available sizes for the G401 swivel?

We offer a full range of sizes from 1/4" up to 3/4" to accommodate various chain and rigging needs.

What is the standard lead time and shipping port?

Our production capacity is 2 containers per month, with a delivery time of approximately one month per container. We typically ship via Qingdao port or other major ports in China.
