China EN13411-5 White Galvanized A Type Malleable Wire Rope Clips Manufacturers, Quotes

1 / 3

China EN13411-5 White Galvanized A Type Malleable Wire Rope Clips Manufacturers, Quotes

FOB Price: US $0.5 - 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month
Port: Qingdao
Payment Terms: L/C,D/A,D/P,T/T

Send Inquiry

Product Description

📦 PRODUCT DETAILS & INTRODUCTION

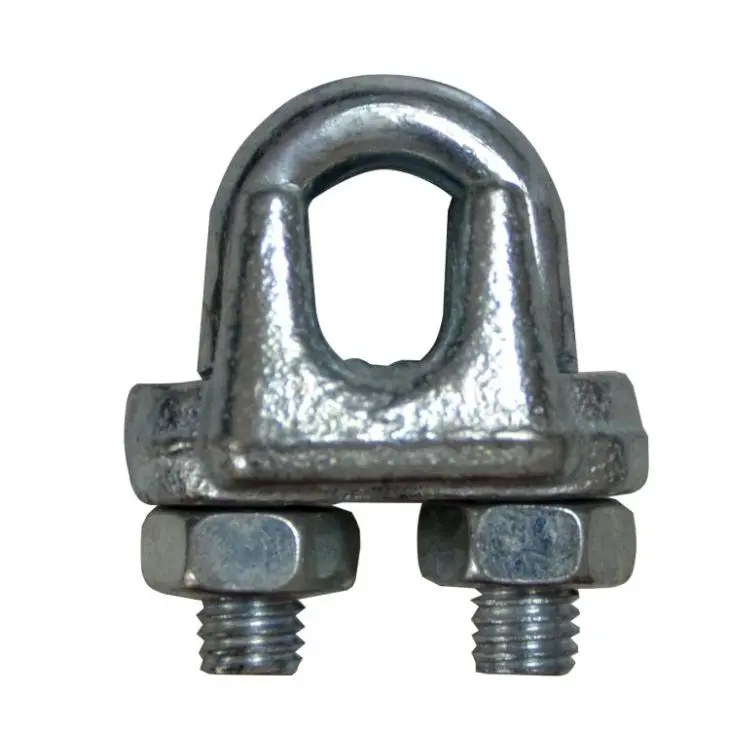

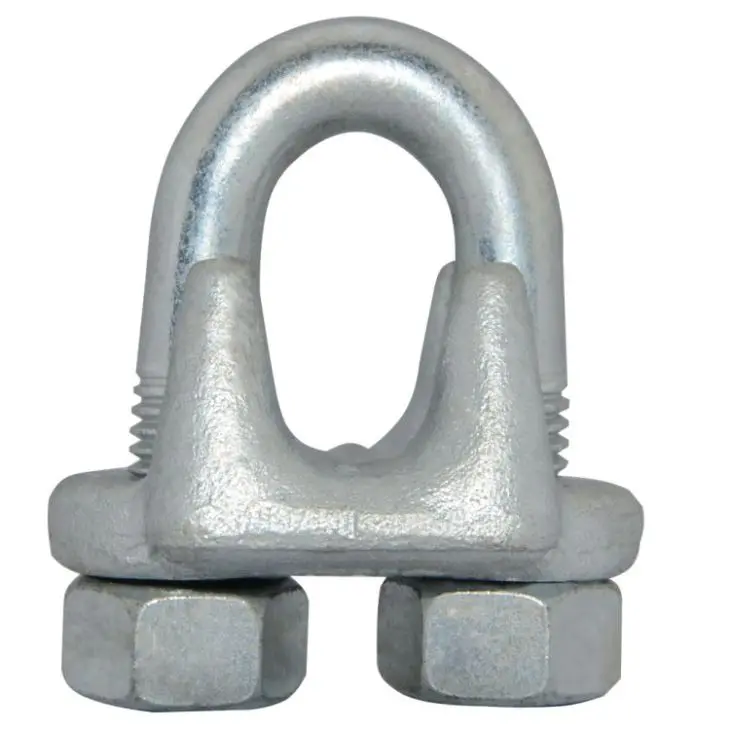

Product Name: Galvanized A Type Malleable Wire Rope Clips
Size Range: 6mm - 50mm
Main Body: Malleable Iron
U-Bolt Material: Q235 Steel
Surface Finish: White Galvanized / Yellow Galvanized
Manufacturing: Precision Casting Technology

📐 TECHNICAL DIMENSIONS (EN13411-5)

Size (mm)	Dimensions (mm)							Weight / 100pcs (lbs)
Size (mm)	A	B	C	D	E	F	G	Weight / 100pcs (lbs)
6	23	14	17	5	12	14	24	5.5
8	28	17	21	6	15	16	30	9.9
10	38	21	28	8	19	20	37	19.84
12	45	27	34	10	24	25	47	39.68
15	52	32	40	12	29	30	56	61.73
20	62	38	46.5	14	36	36	70	103.62
22	69	43	51.5	16	40	39	77	136.68
25	76	50	56	18	43	44	85	187.4
28	85	57	62	20	48	48	95	264.55
32	93	61	67	22	55	51	108	346.12
40	111	73	81	24	64	62	120	575.4
45	123	86	88	27	72	70	137	800
50	135	95	95	30	80	88	154	1058.2

📋 PRODUCT SPECIFICATION

Item: Galvanized A Type Malleable Wire Rope Clips
MOQ: 10,000 pieces
Production Capacity: 2 Containers per month
Available Certificates: Factory test reports, Material test reports, Third-party inspection reports
Applications: Specialized for securing wire rope ends and loops.

🚢 PACKAGE, SHIPPING & QUALITY

Packing: Gunny bags, cartons, and pallets (customizable)
Shipping Terms: FOB, CIF, CFR, EXW
Payment Terms: T/T, L/C
Delivery Time: 30 days per container
Loading Ports: Qingdao, Shanghai, Ningbo, Guangdong, Tianjin

Packaging Display

Production Workshop

Pre-shipment Testing

❓ FREQUENTLY ASKED QUESTIONS

What materials are used for the A Type Wire Rope Clips?

The body is made of malleable iron for durability, and the U-bolt is constructed from high-quality Q235 steel.

What surface treatments can you provide?

We offer white galvanized, yellow galvanized, and hot-dip galvanized finishes to ensure excellent corrosion resistance.

What is the standard manufacturing compliance for these clips?

These products are manufactured according to the EN13411-5 standard, ensuring consistent quality for rigging applications.

What is the typical production lead time?

For a standard full container order, the typical delivery time is within 30 days.

Do you support third-party quality inspections?

Yes, we can supply factory tests, material tests, and facilitate any other required third-party inspections before shipment.

Which ports in China can you ship from?

We primarily ship from Qingdao port, but we can also arrange shipment from Shanghai, Ningbo, Guangdong, or Tianjin ports.
