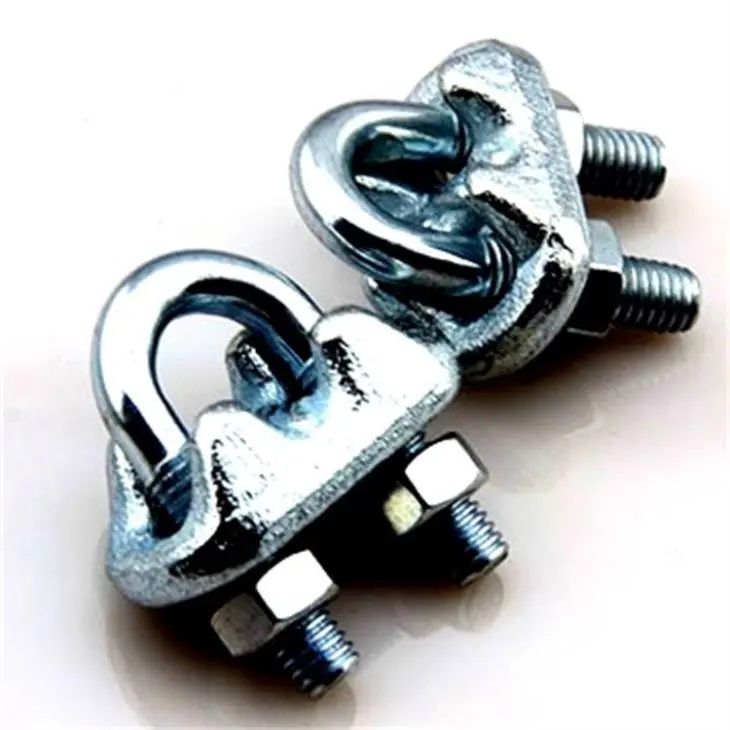

| DETAILS | Italian Type Forged Wire Rope Clips |
|
| Size | 3-4mm - 45mm | |
| Material | Carton steel | |
| Surface | Galvanized or others | |
| Technology | Forged | |
| Application | Used for wire rope |
| Size(mm) | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | I | L | L1 | |
| 3-4 | 21 | 14 | 9 | 4 | 4.5 | 9 | 20 | 11 |
| 5 | 25 | 17 | 10 | 5 | 4.5 | 11 | 24 | 13 |
| 6 | 30 | 19 | 11 | 6 | 5 | 14 | 33 | 18 |
| 8 | 34 | 22 | 12 | 6 | 5 | 16 | 35 | 18 |
| 10 | 38 | 22 | 14 | 8 | 6 | 18.5 | 44 | 22 |
| 11 | 41 | 24 | 14.3 | 8 | 7 | 22 | 44 | 22 |
| 12 | 45 | 25 | 16 | 10 | 7 | 24 | 55 | 33 |
| 14 | 46 | 27 | 17 | 10 | 7.5 | 24 | 55 | 33 |
| 16 | 53 | 31 | 18 | 10 | 8 | 30 | 65 | 33 |
| 18 | 59 | 33 | 20 | 12 | 8 | 30 | 78 | 38 |
| 20 | 60 | 34 | 22 | 12 | 8 | 34 | 78 | 38 |
| 22 | 66 | 35 | 23 | 12 | 8 | 36 | 81 | 45 |
| 24-25 | 70 | 40 | 24 | 12 | 9 | 39 | 86 | 45 |
| 26 | 72 | 40 | 26.5 | 14 | 12 | 42 | 95 | 50 |
| 28 | 80 | 43 | 30 | 14 | 12 | 43 | 110 | 55 |
| 30 | 80 | 44 | 33 | 14 | 10 | 47 | 110 | 50 |
| 32 | 92 | 45 | 34 | 16 | 14 | 49 | 115 | 60 |
| 34 | 90 | 48 | 37 | 16 | 11 | 53 | 120 | 55 |
| 38 | 95 | 52 | 39 | 16 | 16 | 57 | 130 | 63 |
| 40 | 100 | 55 | 40 | 16 | 14 | 59 | 140 | 60 |
| 45 | 116 | 60 | 47 | 16 | 17 | 70 | 158 | 83 |

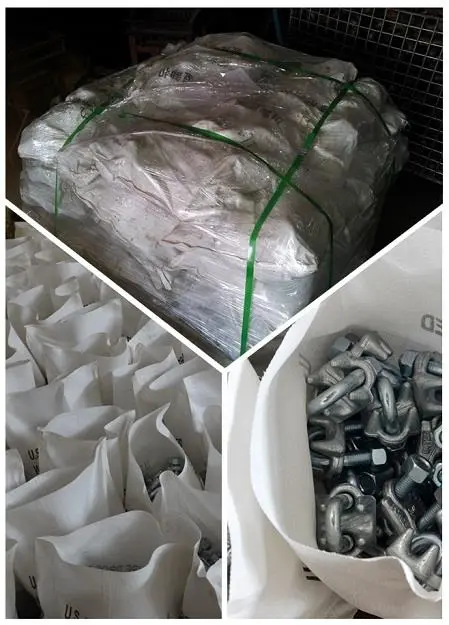

Workshop for Carton Steel Galvanized Italian Type Forged Wire Rope Clips
Test before shipment for Carton Steel Galvanized Italian Type Forged Wire Rope Clips
