Product Details

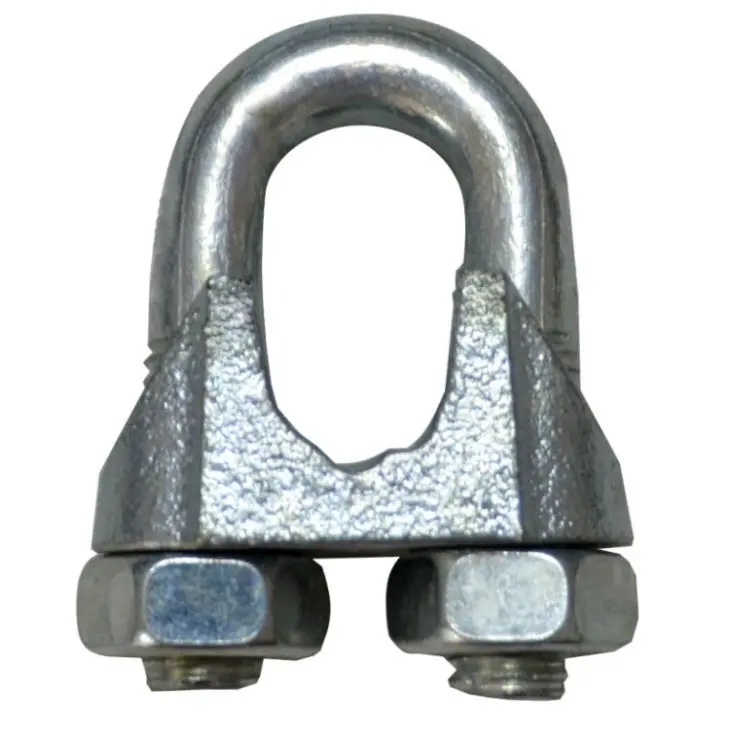

3mm Galvanized DIN741 Standard Cast Bulldog Clips For Wire Rope are essential rigging hardware designed for securing the loose end of a wire rope loop. These clips are manufactured to meet DIN741 standards, ensuring reliability for non-critical applications.
- Material: Malleable for body, Q235 steel for U bolt
- Size: 3mm - 40mm
- Surface: Galvanized or others
- Technology: Cast
- Application: Used for wire rope loops and securing
| Size (mm) |
Dimensions (mm) |
Weight 100pcs (lbs) |
| A |
B |
C |
D |
E |
F |
G |
| 3 | 21 | 10 | 10 | 4 | 9 | 12 | 16.6 | 3.09 |
| 5 | 23 | 10 | 11 | 5 | 11 | 13 | 19.65 | 3.3 |
| 6.5 | 26 | 11 | 12 | 5 | 13 | 15 | 23.65 | 4.63 |
| 8 | 30 | 15 | 14 | 6 | 16 | 19 | 28.85 | 9.04 |
| 10 | 34 | 17 | 18 | 8 | 19 | 22 | 35 | 15 |
| 11 | 36 | 18 | 19 | 8 | 20 | 22 | 37 | 15.87 |
| 13 | 40 | 21 | 23 | 10 | 24 | 30 | 46.24 | 28.7 |
| 14 | 44 | 22 | 23 | 10 | 25 | 30 | 48.24 | 29.76 |
| 16 | 50 | 26 | 26 | 12 | 29 | 33 | 52.5 | 46.3 |
| 19 | 54 | 30 | 29 | 12 | 32 | 38 | 64.5 | 61.7 |
| 22 | 61 | 34 | 33 | 14 | 37 | 44 | 72.5 | 88.2 |
| 26 | 65 | 37 | 35 | 14 | 41 | 45 | 82.5 | 97.0 |
| 30 | 74 | 43 | 37 | 16 | 48 | 50 | 95.6 | 145.5 |
| 34 | 80 | 50 | 42 | 16 | 52 | 55 | 105.6 | 187.4 |
| 40 | 88 | 55 | 45 | 16 | 58 | 60 | 125.6 | 229.3 |
Product Specification
- Item: DIN741 Standard Cast Bulldog Clips
- Type: DIN741
- Size Range: From 3mm to 40mm
- Material: Malleable Iron (Body), Q235 Steel (U-Bolt)
- Minimum Order Quantity: 10000 pieces
- Production Capacity: 2 Containers per month
- Quality Assurance: High quality standards with competitive pricing
Package and Shipping
- Packing: Gunny bag, carton case, and pallet (Customizable based on requirements)
- Shipping Methods: By sea (Ship) or By air
- Payment Terms: 30% advance payment or LC
- Delivery Time: Approx. 1 month per container
- Load Port: Qingdao port or other major Chinese ports
Workshop & Quality Control
Workshop Facility
Test Before Shipment
Frequently Asked Questions (FAQ)
What is the main application of DIN741 bulldog clips?
DIN741 clips are primarily used to secure the ends of wire rope and create loops. They are suitable for light-duty applications and non-critical rigging tasks.
What materials are used in these clips?
The body is made from malleable iron, while the U-bolt is crafted from Q235 steel, providing a balance of strength and durability.
Are these clips suitable for overhead lifting?
No, DIN741 standard bulldog clips are generally not recommended for overhead lifting or high-load safety applications. For such needs, heavy-duty forged clips should be used.
What surface finishes are available?
The standard finish is galvanized to prevent rust and corrosion, but other finishes can be provided based on customer requirements.
What is the typical delivery time for a bulk order?
For a standard container-sized order, the delivery time is approximately one month after payment confirmation.
Can you customize the packaging?
Yes, we offer gunny bags, cartons, and pallets. We can also accommodate specific customized packaging requests from our clients.
