PRODUCT DETAILS
1. Product Introduction of the Galvanized Commercial Type Cast Iron Turnbuckles
| Commercial Type Turnbuckles Overview |
| Material |
Carbon steel for Eye, Malleable for body |
| Size Range |
6x100 to 24x350 |
| Surface Finish |
Galvanized and others |
| Technology |
Cast |
| Application |
Used for wire rope tensioning |

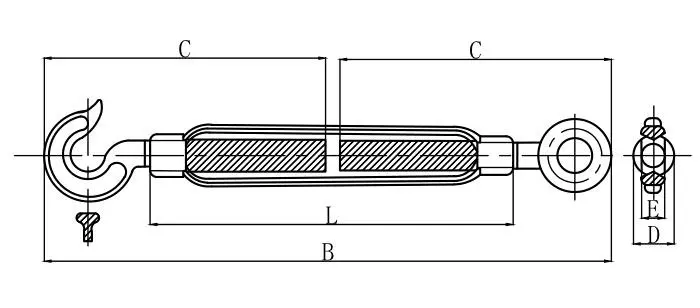

| Size (mm) |
WLL (kg) |
Dimensions (mm) |
Weight (lbs) |
| B |
C |
D |
E |
F |
L |
| 6x100 | 100 | 145 | 215 | 12 | 10 | 6 | 100 | 0.35 |
| 8x125 | 200 | 185 | 280 | 14 | 12 | 8 | 125 | 0.53 |
| 10x150 | 300 | 210 | 325 | 16 | 14 | 9 | 150 | 0.79 |
| 12x200 | 500 | 275 | 430 | 19 | 18 | 11 | 200 | 1.41 |
| 16x250 | 1000 | 345 | 540 | 23 | 24 | 14 | 250 | 3.18 |
| 20x300 | 1500 | 435 | 670 | 28 | 26 | 18 | 300 | 4.96 |
| 22x330 | 2200 | 480 | 740 | 34 | 32 | 20 | 330 | 7.79 |
| 24x350 | 3000 | 555 | 830 | 36 | 36 | 21 | 350 | 9.58 |
2. Product Specification of the Commercial Type Turnbuckles
⚙️
Item: Commercial Type Turnbuckles
🛠️
Material: Q235 steel For Eye, Malleable for body
📏
Size: From 6x100 to 24x350
✨
Surface: Galvanized and others
🏭
Capacity: 2 Containers per month
✅
High quality, Competitive price and good service. Customers' special need is welcomed

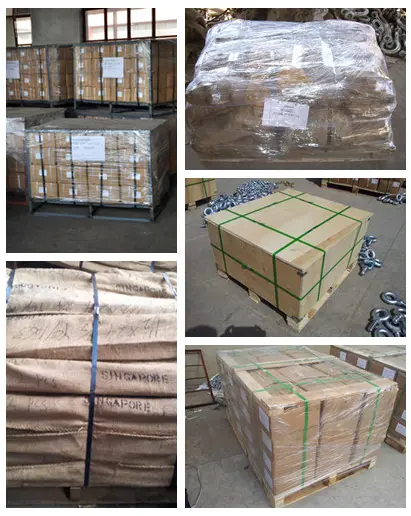

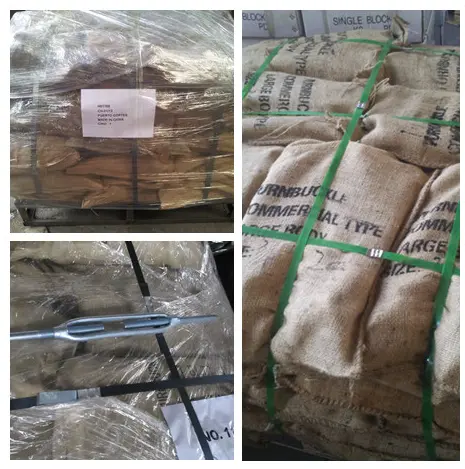

3. Package and shipping of the Commercial Type Turnbuckles
🗳️
Packing: Gunny bag or carton case and pallet or customized
🚢
Shipping: By ship or by air
💳
Payment: 30% payment in advance or LC
⏱️
Delivery: 1 container per month
⚓
Load Port: Qingdao port or other ports in China
Workshop
Test before shipment
Frequently Asked Questions
What materials are used in these turnbuckles?
The eyes are made from high-quality Q235 carbon steel, while the body is constructed from durable malleable cast iron for optimal performance.
Are commercial type turnbuckles suitable for overhead lifting?
Commercial type turnbuckles are designed for light-duty tensioning and non-critical applications. They are generally not recommended for heavy overhead lifting.
What surface treatment is applied for corrosion resistance?
These products are standardly galvanized to provide a protective layer against rust and environmental elements.
Can I request customized packaging for bulk orders?
Yes, we offer flexible packaging options including gunny bags, carton cases, and pallets based on your specific requirements.
What is the typical production capacity for this item?
Our current production capacity is approximately 2 containers per month, with a delivery timeframe of roughly one month per container.
What are the available size ranges?
We offer a wide range of sizes starting from 6x100mm up to 24x350mm to suit various wire rope applications.
