China M6 Galvanized Forged DIN1480 Turnbuckles with Eye and Hook Factories, Factory

1 / 3

China M6 Galvanized Forged DIN1480 Turnbuckles with Eye and Hook Factories, Factory

FOB Price US $0.5 - 9,999 / Piece
Min.Order Quantity 100 Piece/Pieces
Supply Ability 10000 Piece/Pieces per Month
Port Qingdao
Payment Terms L/C,D/A,D/P,T/T

Send Inquiry

Product Description

Product Details

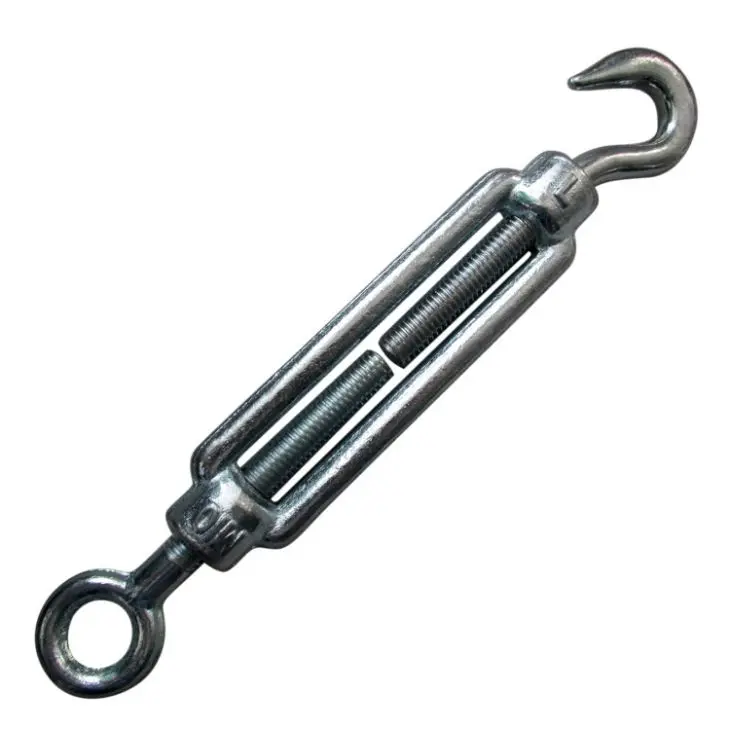

1. Product Introduction of the M6 Galvanized Forged DIN1480 Turnbuckles With Eye And Hook

DETAILS	DIN1480 Turnbuckles
📏 Size: M6 to M36 ⛓️ Material: Carbon steel ✨ Surface: Galvanized, Hot dip galvanized and others 🛠️ Technology: Drop Forged	Used for wire rope tensioning and securing.

Size (mm)	Dimensions (mm)							WLL (kg)	Weight 100 pcs(kg)
Size (mm)	L1	L2	L3	b1	L4	d1	L5	WLL (kg)	Weight 100 pcs(kg)
M6	110	80	85	8.5	80	9	172	230	7.8
M8	110	75	85	11	84	10	182	418	14.8
M10	125	85	112	13.5	105	14	213	663	29.6
M12	125	80	117	15.5	115	16	238	948	36.3
M16	170	110	138	19	165	22	320	1804	91
M20	200	130	170	20.5	167	24	367	2752	156
M24	255	170	205	26	205	27	447	3996	325
M30	255	160	225	33	255	31	512	6371	415
M36	295	180	255	44	276	43	568	9276	745

Product Specification

2. Technical Specifications of DIN1480 Turnbuckles

🔘 Item: DIN1480 Turnbuckles

🔘 Type: DIN1480 Eye and Hook

🔘 Material: Q235 steel

🔘 Size Range: M6 to M36

🔘 Surface: Galvanized, Hot dip galvanized

🔘 MOQ: 1000 pieces

🔘 Capacity: 2 Containers per month

🔘 Quality: High quality, Competitive price

Package and Shipping

3. Logistics Details for DIN1480 Turnbuckles

📦 Packing: Gunny bag or carton case and pallet or other customized requirement

🚢 Shipping: By sea or by air

💳 Payment Terms: 30% payment in advance or LC

📅 Delivery Time: 1 container per month

⚓ Load Port: Qingdao port or other Chinese ports

Manufacturing Excellence

We are an enterprise that mainly manufactures high-quality rigging products. Our specialization includes various rigging such as shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, thimbles, anchors, snap hooks, anchor chains, clamps, and stainless steel rigging. We also offer custom processing based on drawings, samples, and materials supplied by customers.

Workshop & Quality Control

Workshop Facility

Test Before Shipment

Frequently Asked Questions

What materials are the DIN1480 turnbuckles made of?

They are primarily manufactured from high-grade Carbon steel (Q235) for optimal strength and durability.

What sizes are available for these turnbuckles?

We offer a full range of sizes from M6 up to M36 to meet different industrial requirements.

What surface treatments can I choose?

The standard finishes include Electric Galvanized and Hot Dip Galvanized. Other custom surface treatments are available upon request.

What is your production capacity for these rigging products?

Our facility has a production capacity of approximately 2 containers per month.

Do you offer customized manufacturing based on drawings?

Yes, we can process products according to provided drawings, samples, or specific material requirements from our clients.

What is the typical delivery time for a bulk order?

For a standard order of one full container, the delivery time is usually around one month.
